Box Internet

  • Forfait Orange
  • 1 Gbit/s en débit descendant et 700 Mbit/s en débit montant

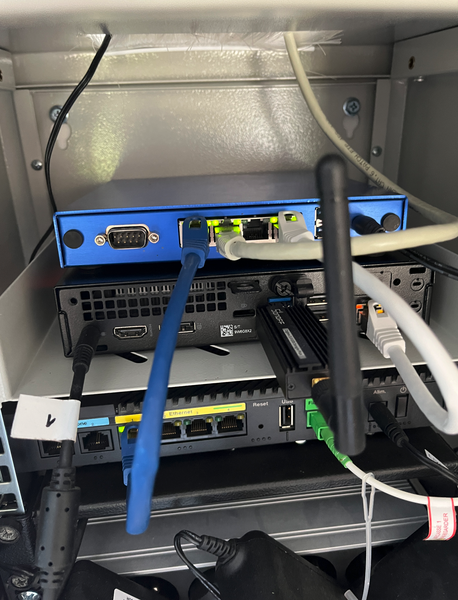

Routeur OPNsense PC Engines APU2

box-internet-router-2

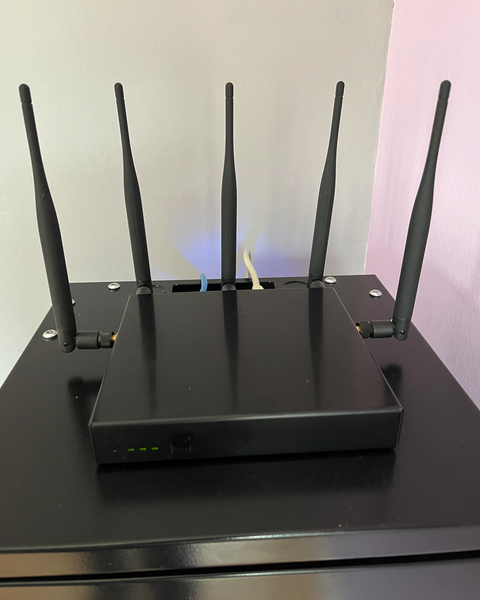

AP et Répéteur Wifi PC Engines APU2

Point d’accès et répéteur Wifi avec OpenWrt.

access-point

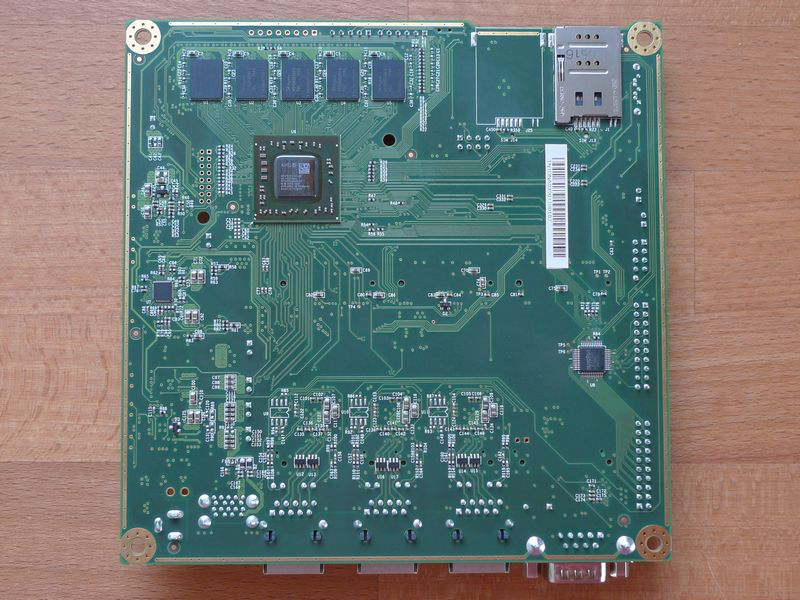

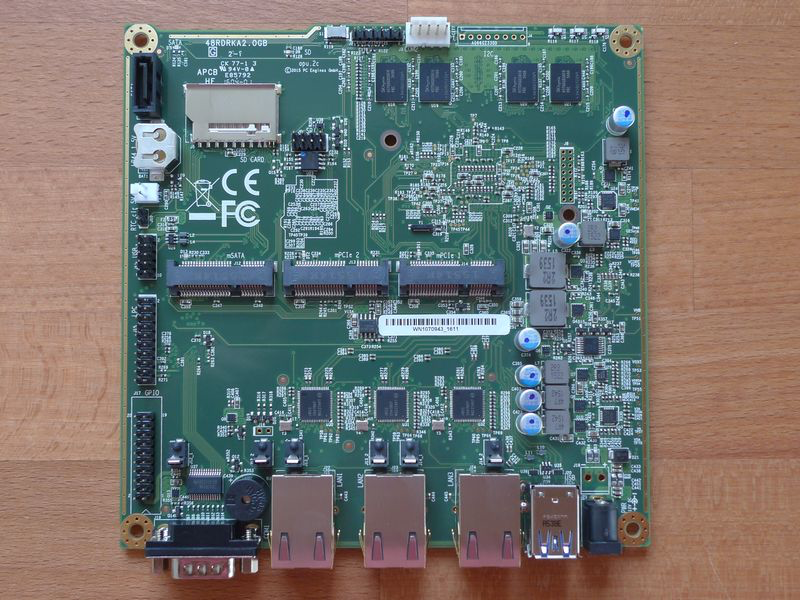

Spécifications des cartes PC Engines APU2

  • CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
  • DRAM: 2 or 4 GB DDR3-1333 DRAM
  • Storage: Boot from m-SATA SSD, SD card (internal sdhci controller), or external USB. 1 SATA + power connector.
  • 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
  • Connectivity: 2 or 3 Gigabit Ethernet channels (Intel i211AT on apu2b2, i210AT on apu2b4)
  • I/O: DB9 serial port, 2 USB 3.0 external + + 2 USB 2.0 internal, three front panel LEDs, pushbutton
  • Expansion: 2 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM2 (3.3V RXD / TXD)
  • Board size: 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e.
  • Firmware: coreboot
  • Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included).

apu2c4_1

apu2c4_2

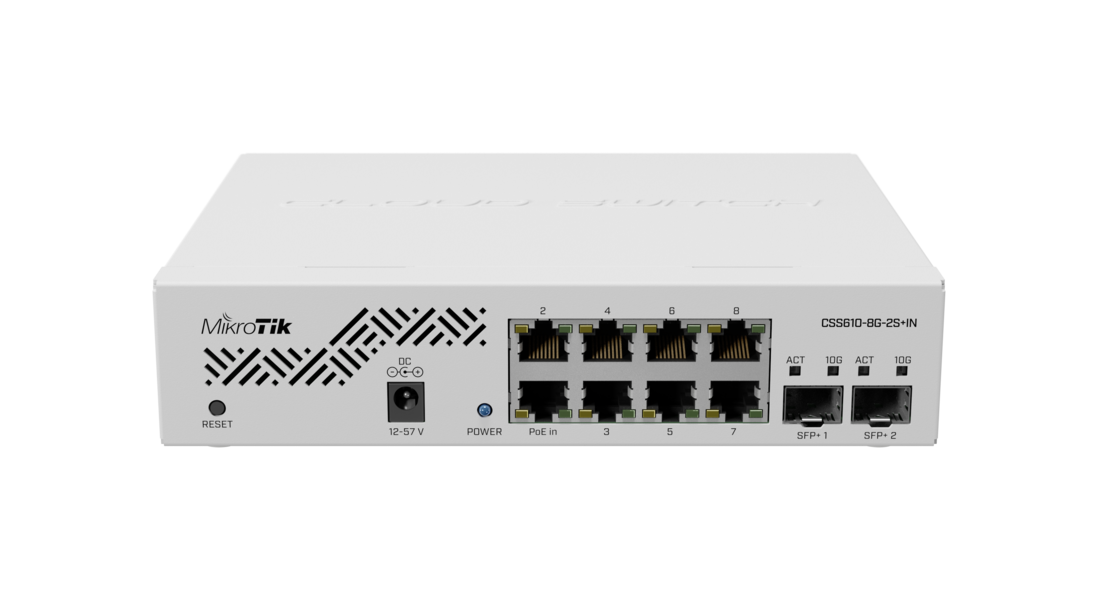

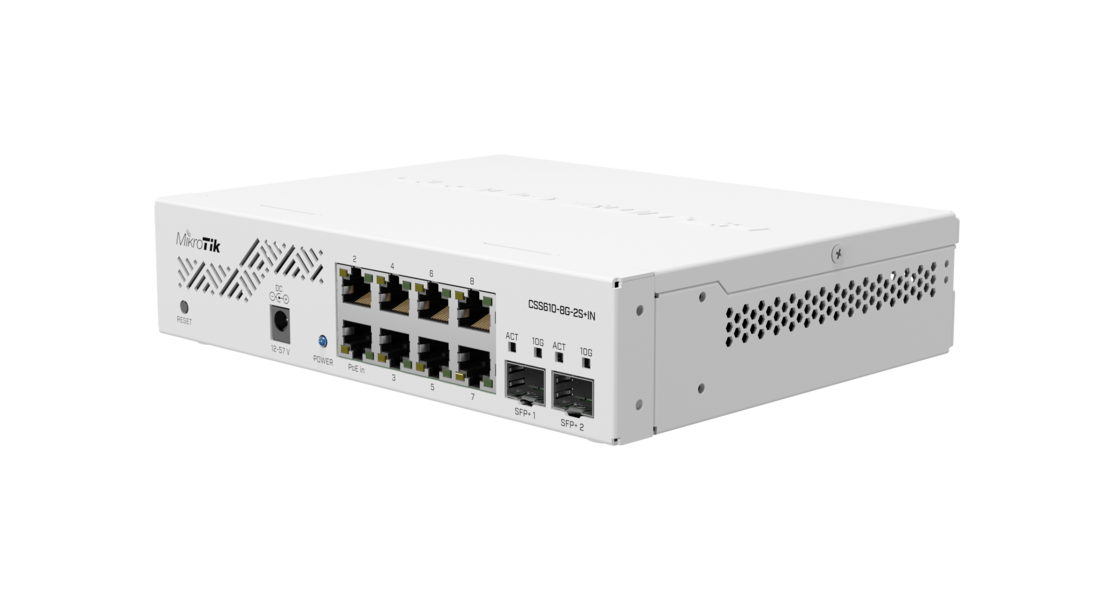

Commutateur réseau administrable MikroTik CSS610-8G-2S+

  • 8 ports Ethernet 10/100/1000
  • 2 ports SFP+
  • OS: SwitchOS Lite

mikrotik-css610-1

mikrotik-css610-2

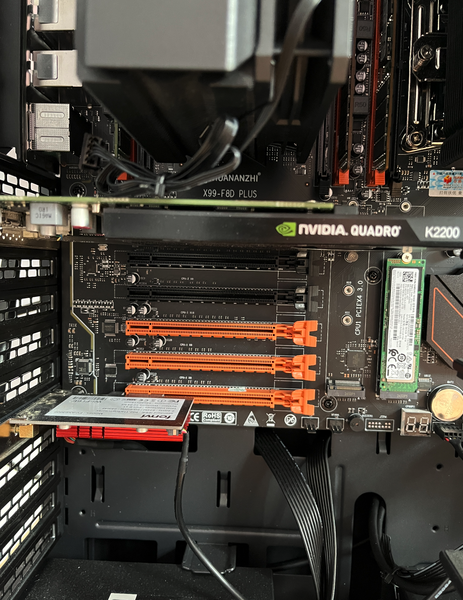

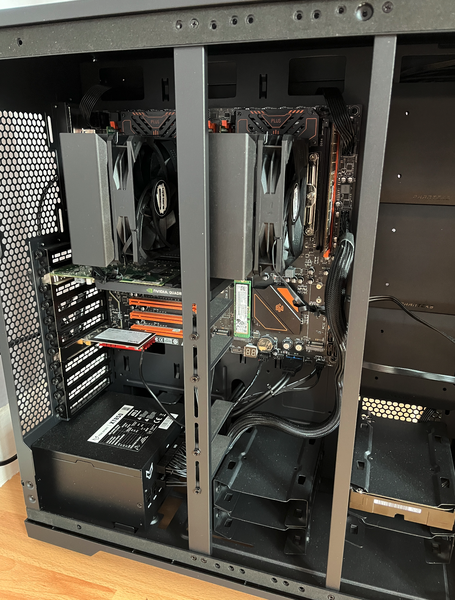

PC Dual Xeon

  • Carte mère: HUANANZHI X99-F8D PLUS
  • CPU: 56 x Intel(R) Xeon(R) CPU E5-2680 v4 @ 2.40GHz (2 Sockets)
  • RAM: 128 Go DDR4 ECC 2400
  • Disque: SSD NVME 1To et SSD 240 Go
  • OS: Proxmox

pc-dual-xeon-1

pc-dual-xeon-2

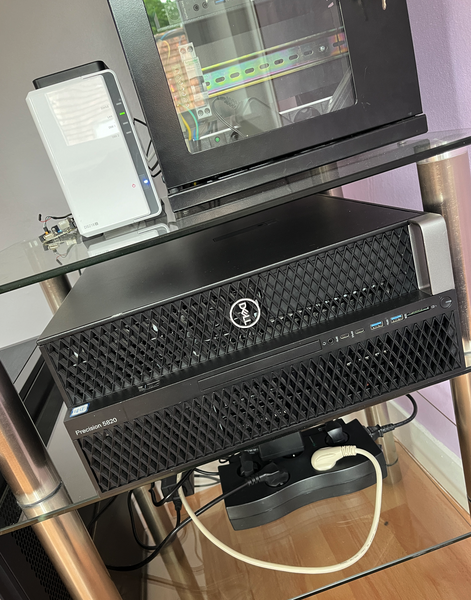

Station de travail Dell 5820

  • CPU: 12 x Intel(R) Xeon(R) W-2133 CPU @ 3.60GHz (1 Socket)
  • RAM: 48 Go DDR4 ECC 2666
  • Disque: SSD NVME 500 Go
  • OS: Proxmox

dell-5820

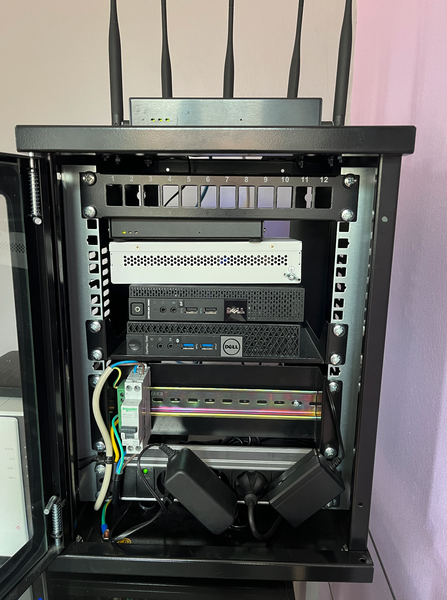

3 Dell Optiplex micro

  • Dell Optiplex 3060

    • CPU: 4 x Intel(R) Core(TM) i5-6600T CPU @ 2.70GHz
    • RAM: 32 Go DDR4 2133
    • Disque: SSD NVME 250 Go
    • OS: Proxmox

  • Dell Optiplex 7040

    • CPU: 6 x Intel(R) Core(TM) i5-8400T CPU @ 1.70GHz
    • RAM: 12 Go DDR4 2666
    • Disque: SSD 500 Go
    • OS: Proxmox

  • Dell Optiplex 9020

    • CPU: 4 x Intel(R) Core(TM) i5-4590T CPU @ 2.00GHz
    • RAM: 6 Go DDR3 1600
    • Disque: SSD 128 Go
    • OS: Proxmox

dell-optiplex

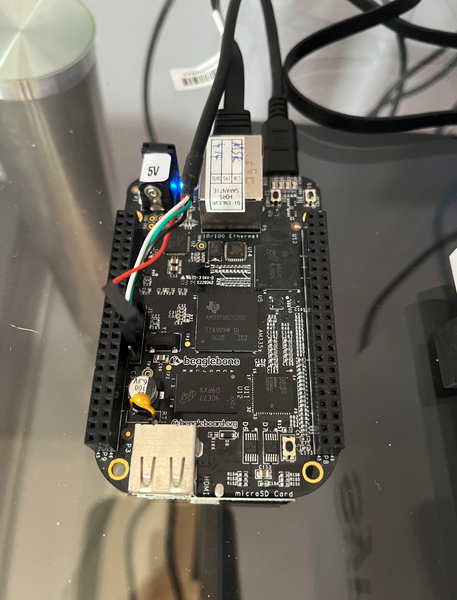

BeagleBone Black

  • CPU: ARM Cortex A8
  • RAM: 512 MB
  • Disque: Onboard Flash 4GB, 8bit Embedded MMC
  • OS: Debian

beaglebone-black

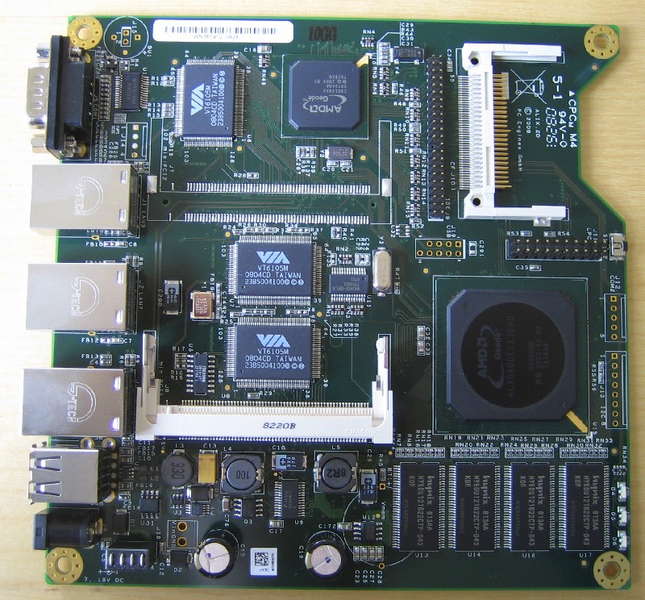

Carte PC Engines Alix 2D3

  • CPU: 500 MHz AMD Geode LX800
  • RAM: 256 MB DDR DRAM
  • Disque: Compact Flash socket, 44 pin IDE header
  • OS: OpenBSD

alix2d3
